Tutorial: Intelligent diagram design (advanced)

Our first goal is to customize the form for value changes. At the end it should look like the one shown in the picture on the right. This form has some additional fields. For instance, there are input fields for "body weight" and "activity duration" instead of the fields for burned calories.

In order to achieve this first goal, we need some additional parameters and mathematical formulas. So, we have the subgoal to extend the data layer of our diagram with the additional mathematical information (see "Given data" below).

It is not necessary to understand each mathematical detail of the given formulas. In case, that you are interested in the topic please find "basal metabolic rate" on Wikipedia®.

We use the shorts "bmr" for "basal metabolic rate" and "mrMinute" for "metabolic rate per minute".

You can add parameters to each item of your diagram as well as to the diagram itself.

We start with the parameters of the diagram itself:

1. Click at the white diagram surface to select it
2. Below "Data" click at the "Parameters" button (leftmost button)
3. In the "Parameters" dialog click "Add parameter"
4. Enter "BodyWeight" as name, "80" as value and "cm" as unit
5. Click "OK"
6. Add the parameters "BodyHeight", "Age" and "Sex" as specified below "Given data"

1. Add a parameter "bmrMale"
2. Start typing "b" (a dropdown will appear)
3. Use the arrow keys <up> and <down> to select "BodyWeight"
4. Hit the <return>-key to accept the current selection

Complete the diagram parameters

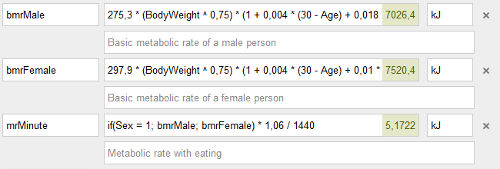

1. Add the parameters "bmrMale", "bmrFemale", "mrMinute"
2. Enter the formulas from "Given data" (ATTENTION: Make sure you replaced the decimal separators and list separators with your localization.)
3. If you like, add comments as shown in the picture below.
4. Check the shown values and compare them with the picture below.

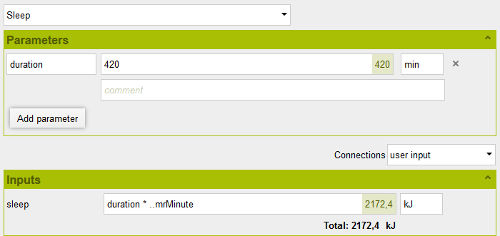

1. Close the parameter dialog
2. Select the item "Sleep" with a click
3. Below "Data" click at the "parameters" button
4. Add a parameter "duration" with value "420" and unit "min"

Next, we want to refer the parameter from the input of the item "Sleep"

1. Enter the formula "duration * ..mrMinute" in the value field of "sleep"

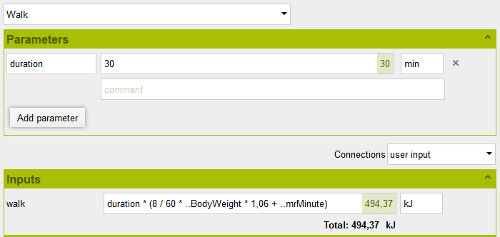

1. Close the parameter dialog and open it again for the item "Walk"
2. Add a parameter "duration" with value "30" and unit "min"
3. Enter the formula from "Given data" for the input "Walk"
4. Compare the value with the picture below

1. Close the parameter dialog and open it again for the item "Workout"
2. Add the parameters with formulas and units (and comments) as specified below "Given data"
3. Enter the formula from "Given data" for the input "Workout"
4. Compare the values with the picture below

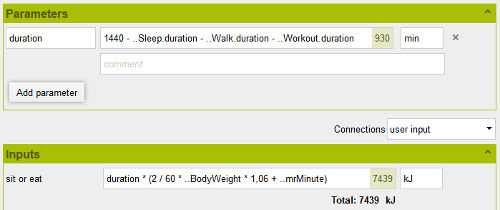

1. Close the parameter dialog and open it again for the item "Sit or eat"
2. Add the parameter "duration" with formula and unit as specified below "Given data"
3. Enter the formula from "Given data" for the input "sit or eat"
4. Compare the values with the picture below

1. Select the diagram with a click on the white surface
2. Open the "Edit form" dialog with a click at the center button below "Data"
3. Find and scroll to the group "Workout"
4. Click at a row below "workout" to enter the edit mode.
5. Currently the captions are equal to the respective parameter names, please change the captions to following values "Light activity", "Running (8 km/h)", "Running (12 km/h)", "Running (17 km/h)", "Cycling (10 km/h)", "Swim (light)", "Fitness" and "Volleyball"
6. Drag a row with the mouse to another position. - Reorder the rows below "Workout" as you like.

1. Find the group "Breakfast" and rename it to "Meals".
2. Rename the row below from "out: breakfast" to "Breakfast"
3. Drag the rows for "Lunch", "Snack" and "Dinner" into the group "Meals" and rename the captions
4. Delete the empty groups "Lunch", "Snack" and "Dinner"

1. Find the group "Sleep" and rename it to "Activities"
2. Rename the caption of "duration" to "Sleep"
3. Drag the "duration" row from group "Walk" to group "Activities" and give it the proper caption "Walk"
4. Remove the empty group "Walk"
5. Click at the "+"-button in the bottom row and "Add value display"
6. Enter the caption "Sit or eat"
7. Click at the button right to the caption
8. Select "duration" from the folder "Sit or eat" and click "OK"
9. Drag the row between "Sleep" and "Walk"
10. Finally drag the whole group "Workout" by grabbing it's title panel and drop it into the group "Activities"

1. Click at the "+" button and "Add group"
2. Name the new group "Personal settings" and move it to the top
3. Move the rows "Body weight", "Body height", "Age" and "Sex (0=female, 1=male)" into the group "Personal settings" and give them proper captions.
4. If necessary, bring the groups "Personal settings", "Meals", "Activities" into this order
5. Click at the "Save" button.

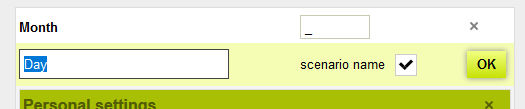

1. Open the "Edit form" dialog again
2. Click at the "+" buttton and "Add attribute"
3. Enter the caption "Month" and drag the row to the top
4. Add another attribute, call it "Day" and drag it below "Month"
5. Click at the "Save" button

1. Find the fields "Month" and "Day" in the data form of the diagram.
2. Enter reasonable values, e.g. "January" and "1"
3. Select the diagrams title text and enter following text "My calorie balance - {{info.month}} {{info.day}}"

1. Select the diagram with a click at the white surface
2. Below "Data" click at the rightmost button "Scenarios"
3. Click at the "+" button and enter "January" and "1" in the respective fields
4. Click at the folder "January"
5. Click at the "+"-button again and enter "2"
6. Add further scenarios if you like
7. Click at a scenario name to activate it
